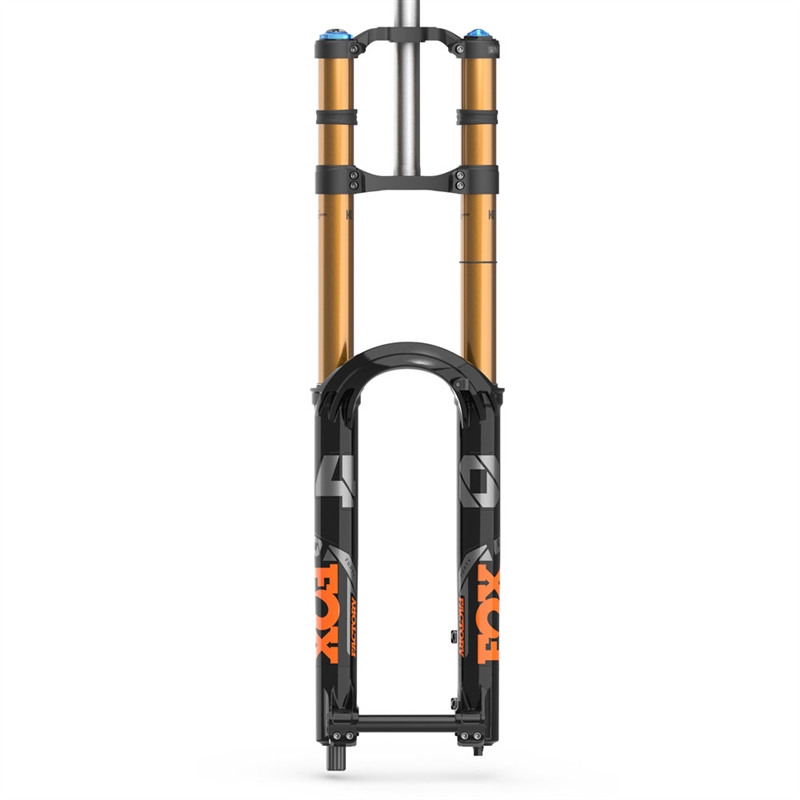

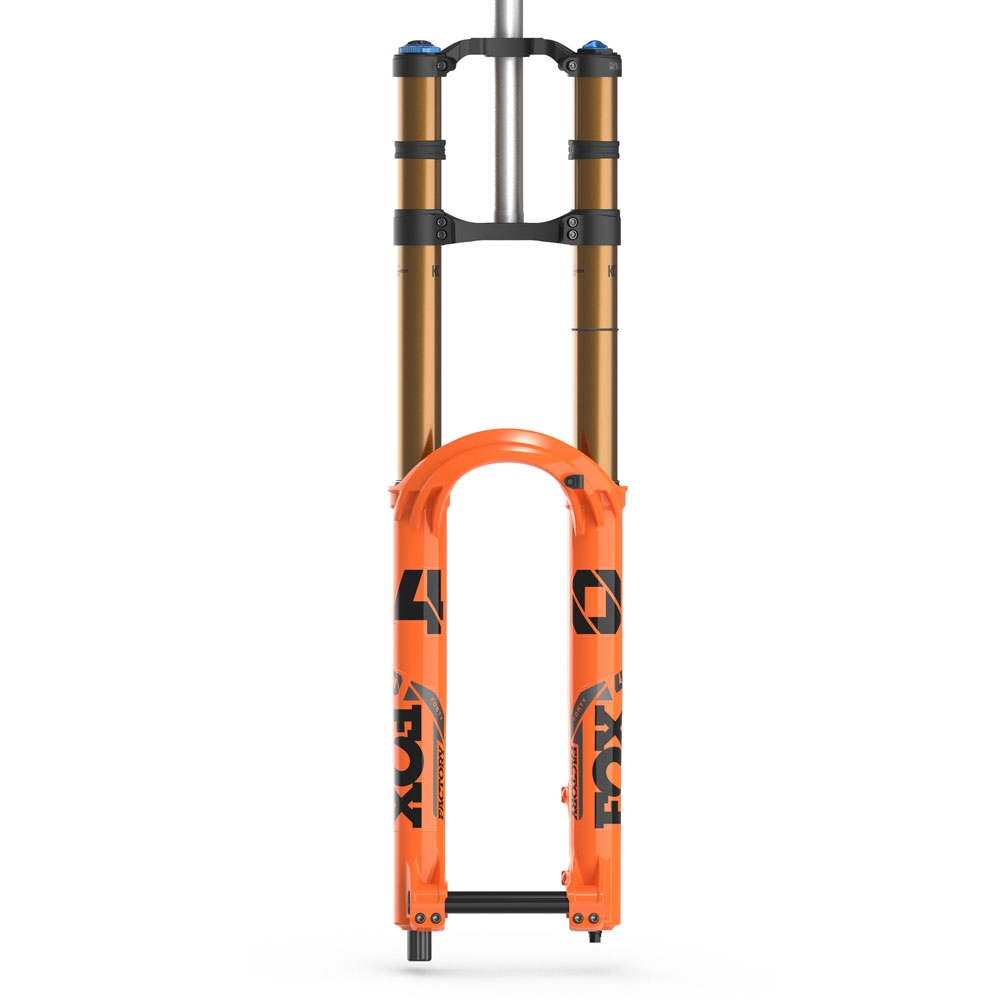

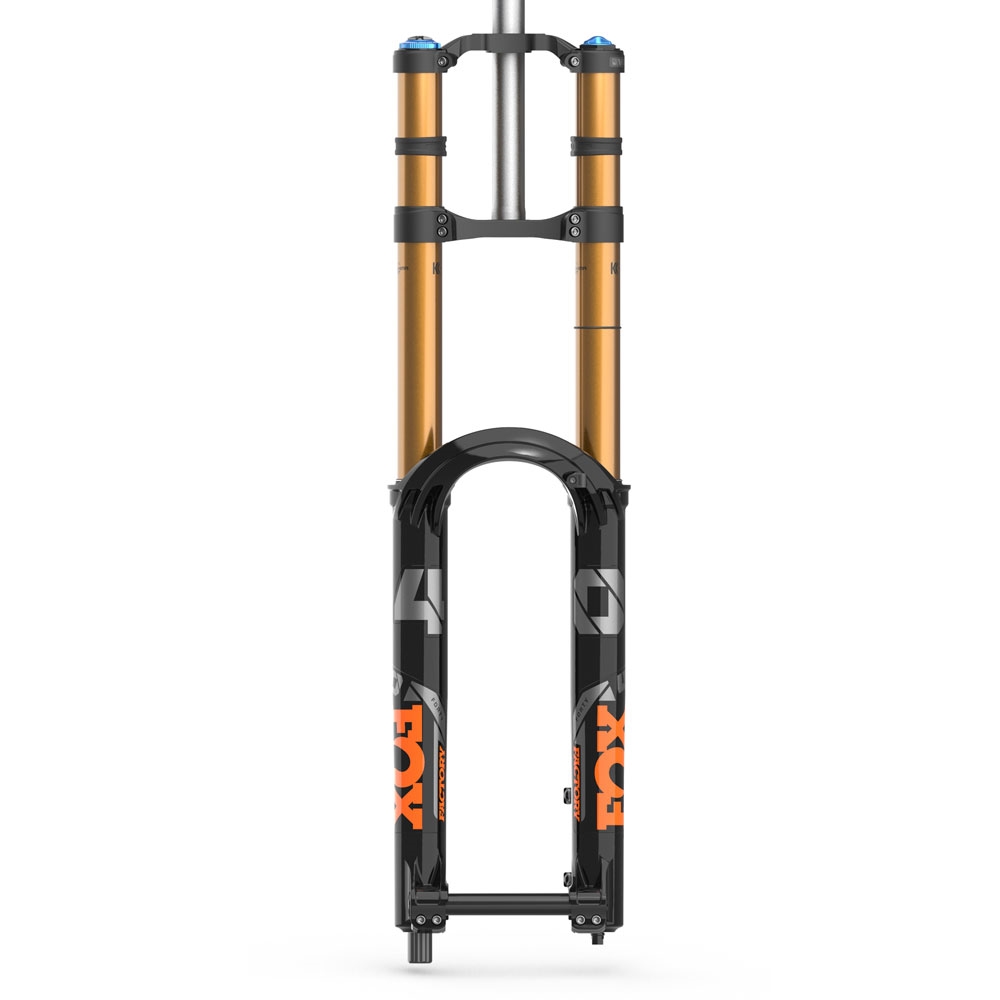

Fox Factory 40 Float 29 Grip 2 HSC, LSC, HSR, LSR 2022: Target locked on the top step of the podium, developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. A Grip2 damper with VVC, and an updated EVOL air spring, along with a host of other radical performance driven features, ensure that the 40 stays in the hot seat.
Our GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes our patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated task of completely disassembling and reassembling the fork.
EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.
The benefits of EVOL are further enhanced by our new Lower Leg channels and Bleeders, which both function to reduce air pressure captured in the lower legs, allowing the EVOL air spring to operate freely without unintended interference.
“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- Wheel Size 29
- Travel 203mm
- Rake 52mm (29)
- Axle 20 Thru-Axle x 110 Boost
- Upper Tube Finish Kashima Coat
- Air Channels Yes
- Bleeders Yes
- Floating Axle Yes
- Rotor Size 203 direct Post Mount, Up to 230 compatible
- Mud Guard Mount Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment
- Air Spring FLOAT EVOL
- Steerer 1.125 Straight
- Starting Weight 2816 g
|
|
|
|
|
|
|
