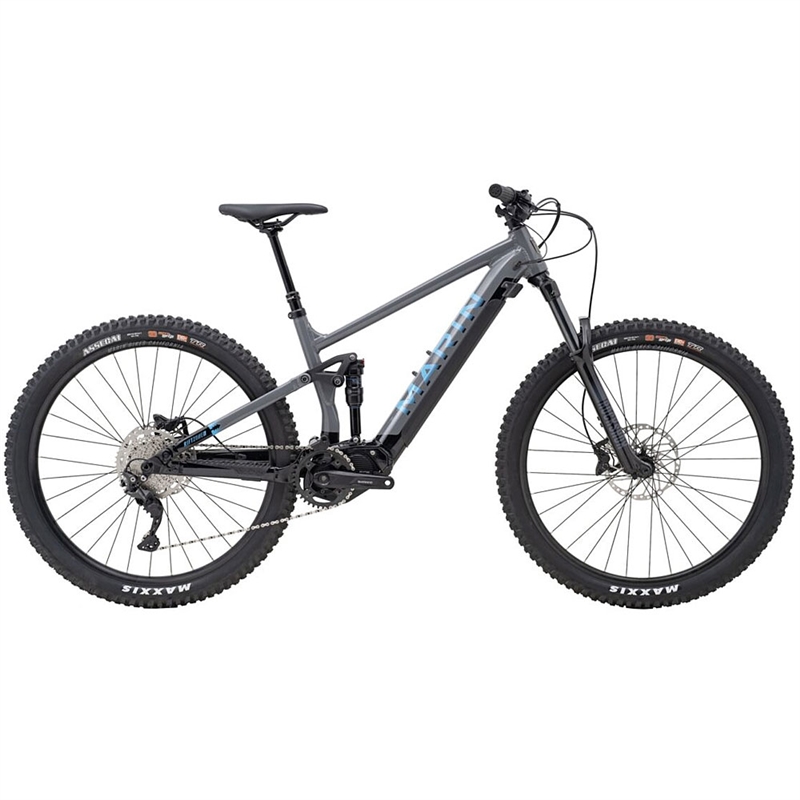

Marin Rift Zone E Mountain E-Bike: One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.
SERIES 4 ALUMINUM FRAME
Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.
MULTITRAC SUSPENSION
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.
SHIMANO STEPS
Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- FRAME
- All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
- FORK
- RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
- SHOCK
- X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount
- RIMS
- Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
- HUB REAR
- Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
- HUB FRONT
- Shimano FH-TC500, 110x15mm, Centerlock, 32H
- SPOKES
- 14g Black Stainless Steel
- TIRES
- Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
- DERAILLEUR REAR
- Shimano Deore, Direct Attachment, 10-Speed SGS
- SHIFT LEVER
- Shimano Deore, 10-Speed, I-Spec EV
- CRANKSET
- Shimano EM600, 160mm Length, 38t Chainring
- MOTOR
- Shimano Steps EP6 Drive Unit, 250W, 85Nm
- CHAIN
- KMC X-10E, Silver
- CASSETTE
- Shimano Deore 10-speed 11-46T
- BRAKES FRONT
- TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
- BRAKES REAR
- TRP Slate EVO 4-Piston Hydraulic
- BRAKE LEVERS
- Shimano MT4100 Hydraulic, I-Spec EV Compatible
- HANDLEBAR
- Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
- STEM
- Marin 3D Forged Alloy, 35mm
- GRIPS
- Marin Grizzly Lock On
- HEADSET
- FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- SEATPOST
- TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
- SADDLE
- Marin eMTB Saddle
- PEDALS
- Marin MTB Plastic
- BATTERY
- Shimano BT-EN805L, Internal 504Wh
- DISPLAY
- Shimano SC-E600
- SWITCH
- Shimano SW-EN600L Left Hand Switch for Assist Mode Change
- EXTRAS
- Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide
|
|
|
|
|
|
|
