Rawrr 72V Mantis All-Terrain E-Moto
Rawrr 72V Mantis All-Terrain E-Moto

Additional Photos:



List Price: $4,999.00
Our Price: $4,749.00
You save $250.00


Free Shipping
Product Code: RAWRR23-MANTIS

Choose Your Color



Qty:
Description Extended Information

Rawrr 72V Mantis All-Terrain E-Moto: The 72V Rawrr Mantis Electric All-Terrain E-Moto is the ultimate choice for adventurers and thrill-seekers who want to conquer any terrain easily. With its high-performance features and advanced technology, this bike is designed to take places you never thought possible.

Unveiling the newest powerhouse from Rawrr, the pioneers of lightweight-electric, off-road motorcycles. Boosting power and torque by 20%, this Mantis version takes excitement to new heights. Brace for an electrifying journey with enhanced features that redefine adventure!

The Rawrr Mantis with a swappable 72-volt, 35-amp battery pushes the boundaries, catapulting the Mantis into the league of the fastest eMotos available. The increased power and torque ensure that riders can navigate rugged terrains with even more power, truly unleashing the power to rip anywhere!

72V Battery
The Mantis uses the latest, advanced Samsung 21700 battery cells, which lead the industry in technology, performance and safety.

7500W Motor
The 7500W peak power provides more power and torque. This is more than the other e-Motos in our category.

50 N.m Torque
This is class-leading torque for exceptional acceleration and climbing ability.

Balanced and Neutral Chassis
Weight distribution is evenly distributed so rider compression from the middle of the seat or standing on the pegs causes the front and rear suspension to compress equally. Others in the e-Moto category don’t have this neutral balance.

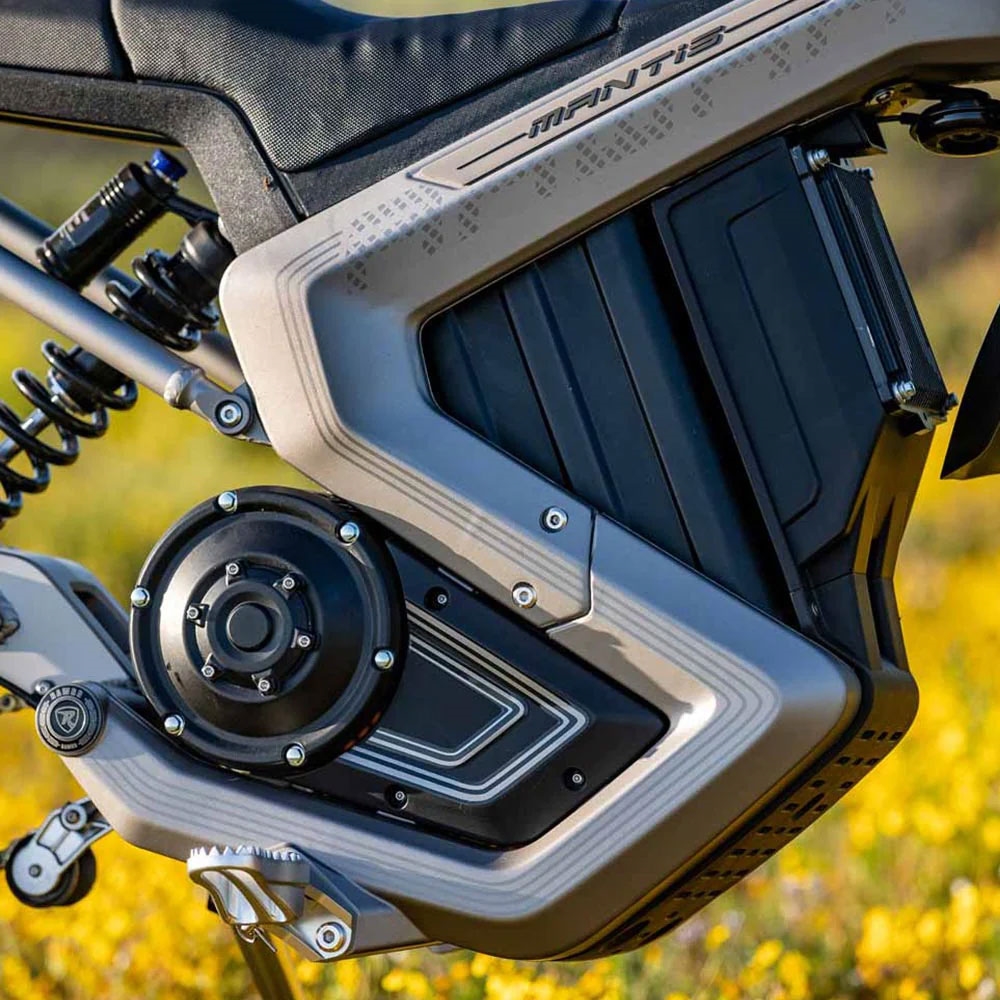

Battery / Motor Placement
The batteries of other electric bikes are essentially on top of the motor creating a higher center of gravity and less ground clearance making them more prone to catching rocks and obstacles with the base of the motor off-road. The Mantis battery is in front of the motor improving the overall stability, durability, and decreasing the seat height.

Motorcycle Transmission
Other electric bikes use belts for gear reduction between the motor and front sprocket. This drains power and is more susceptible to failures. The Mantis uses internal, motorcycle-style gears creating better efficiency and a smoother ride.
Specs & Information
  • GENERAL INFO
  • Length | 1935mm
  • Height | 1200mm
  • Width | 795mm
  • Ground Clearance | 310mm
  • Wheelbase | 1290mm
  • Seat Height | 850mm
  • Vehicle Weight/W Battery | 130lbs/165lbs
  • Front Fork Stroke | 200mm
  • Rear Shock Absorber Stroke | 75mm
  • Tire Size (Front) | 70/100
  • Tire Size (Rear) | 80/100
  • Brake Type | Hydraulic Disc Brake
  • Controller Type | Mantis FOC Controller
  • Max Payload | 265 lbs
  • Front/Back Disc Brake | 203mm
  • Top Speed | 50MPH
  • Max Torque for driving wheel | 459NM
  • Energy Recovery | EABS Brake
  • -
  • BATTERY & CHARGING
  • Battery Type | Lithium
  • Battery Brand | Samsung
  • Battery Cap | 72V 35Ah
  • Range | 75 Mile (Eco mode 15 mph)
  • Charging Time | 3-6 hours
  • Charger Input Voltage | AC90/264V
  • Over-current Protection Value | 120A
  • -
  • MOTOR
  • Motor Type | PMSM
  • Regular Motor Power | 5000W
  • Max Motor Power | 7500W
  • Regular Torque | 10 N.M
  • Max Torque | 50 N.M
  • Motor Rotation Speed | 5100RPM
  • Max Motor Rotation Speed | 6200RPM
  • Motor Efficiency | 94%
  • Harness IP Rating | IPX67
  • Electrical IP Rating | IP56
  • Climbing Ability | 50°+
  • Cooling Method | Air-Cooled
  • Insulation Class | H/180℃
