Can't bring your ebike on the car? That's a thing of the past! While keeping it lightweight, you can still get the best and most comfortable riding experience, all in the Eagle.
- Battery 48V 15Ah Samsung INR21700 lithium battery
- Range 30~45 Miles
- Electric Bike Class Class 2 (configurable to Class 3)
- Hub Motor 750W brushless geared motor, 1056W Peak
- Charging Time 4 ~ 5 Hours
- Total Payload Capacity 300lbs
- Recommended Rider Heights 5'1" ~ 6'4"
- Charger US standard 3.0 A smart charger, UL Certified
- Controller 48V / 22A 12-Tube
- Display Adjustable-Angle, Backlit, Grayscale 2.2'' LCD, IP67
- Frame Aluminium 6061
- Pedal Assist Intelligent 0~5 level pedal assist
- Weight 68lbs
750W Brushless Geared Hub Motor
With 750W sustained, 1056W peak power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
48V 15Ah Samsung Lithium Battery
Our batteries are rated 48V-15Ah and are made of premium Samsung INR21700-50E cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.
Hydraulic Disc Brakes
The sensitive dual-piston hydraulic braking system comes with metal-ceramic brake pads, and 160mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.

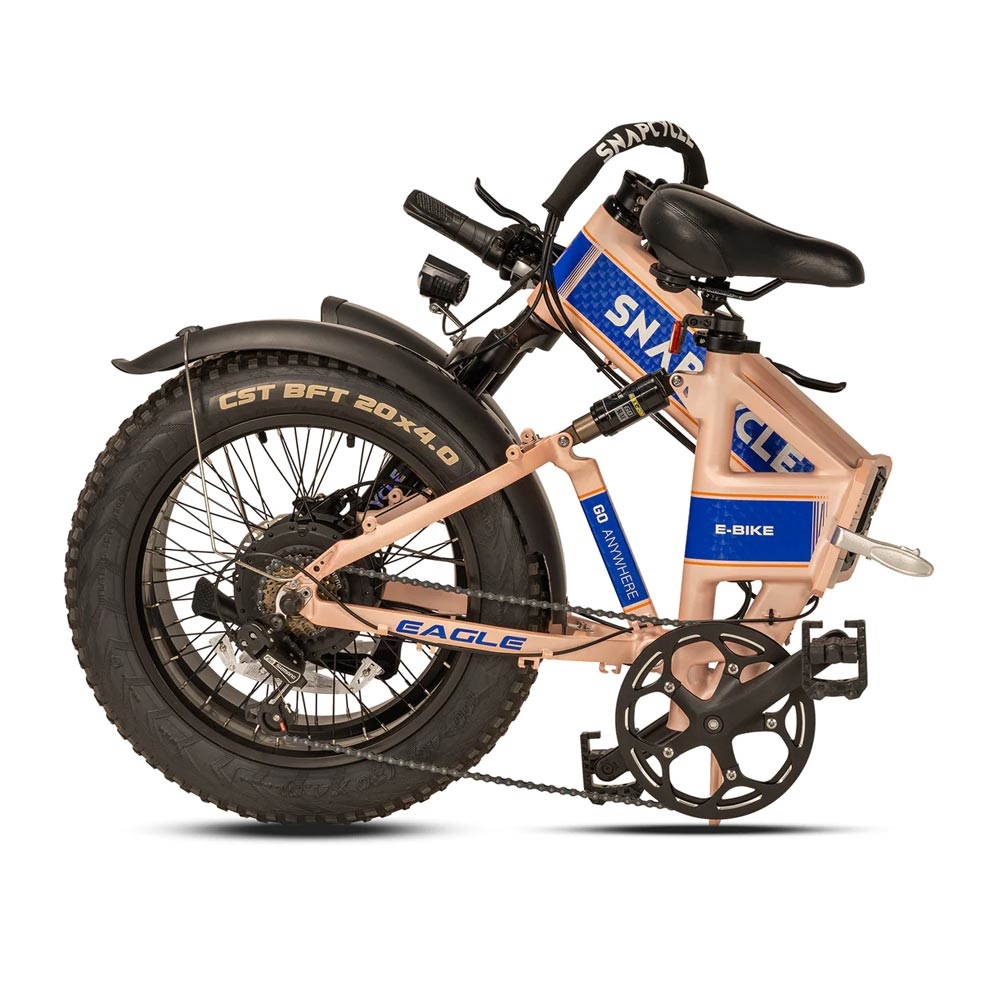

6061 Aluminum Foldable Frame
Once the road wears you out, fold your Snapcycle Eagle effortlessly in three easy steps and get it ready for tomorrow's escapades.
Quick & Smart 48V 3 Amp Charger
It only takes less than 5 hours to fully charge the battery, which greatly shortens the time between rides to keep up with the rapid pace of your commuting demands. This fast charger is certified to UL standards and its safety and reliability are guaranteed.
Half Twist Throttle
The half-twist throttle prevents accidental activation of the electrical motor, protecting you from injuries.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- Brake Calipers RONGLUN FA-500HD
- Brake Levers Aluminium alloy comfort grip levers with motor cutoff switch
- Crank Set53T, 170mm Aluminium Alloy
- Fender Full coverage front and rear
- Freewheel Shimano 14-28T 7-Speed Freewheel
- Pedals Foldable, 9/16"
- Seatpost Clamp Quick-Release type
- Front Suspension Spring Suspension, 95mm Travel, Lockout and Preload Adjustment
- Rear Suspension Pre-adjusted suspension, 145L x 850B 24 x 24
- Brake Rotors 160 mm front and rear
- Chain1/2*3/32*128L
- Derailleur7-Speed Shimano Tourney
- Fork MOZO Spring Suspension, 80mm Travel, Lockout and Preload Adjustment
- Gearing1 x 7 Speed
- Handlebar Aluminum Alloy, 600mm Width, 25.4mm Bore
- Kickstand Heavy-duty aluminum stand
- Rims Aluminum Alloy, 20 inch, Double Wall
- Seatpost Aluminum Alloy, 350mm x 33.9mm Dia
- Shifter Shimano SIS Index Thumb Shifter
- Tire20x4" CST BFT Puncture-Resistant
|
|
|
|
|
|
|
