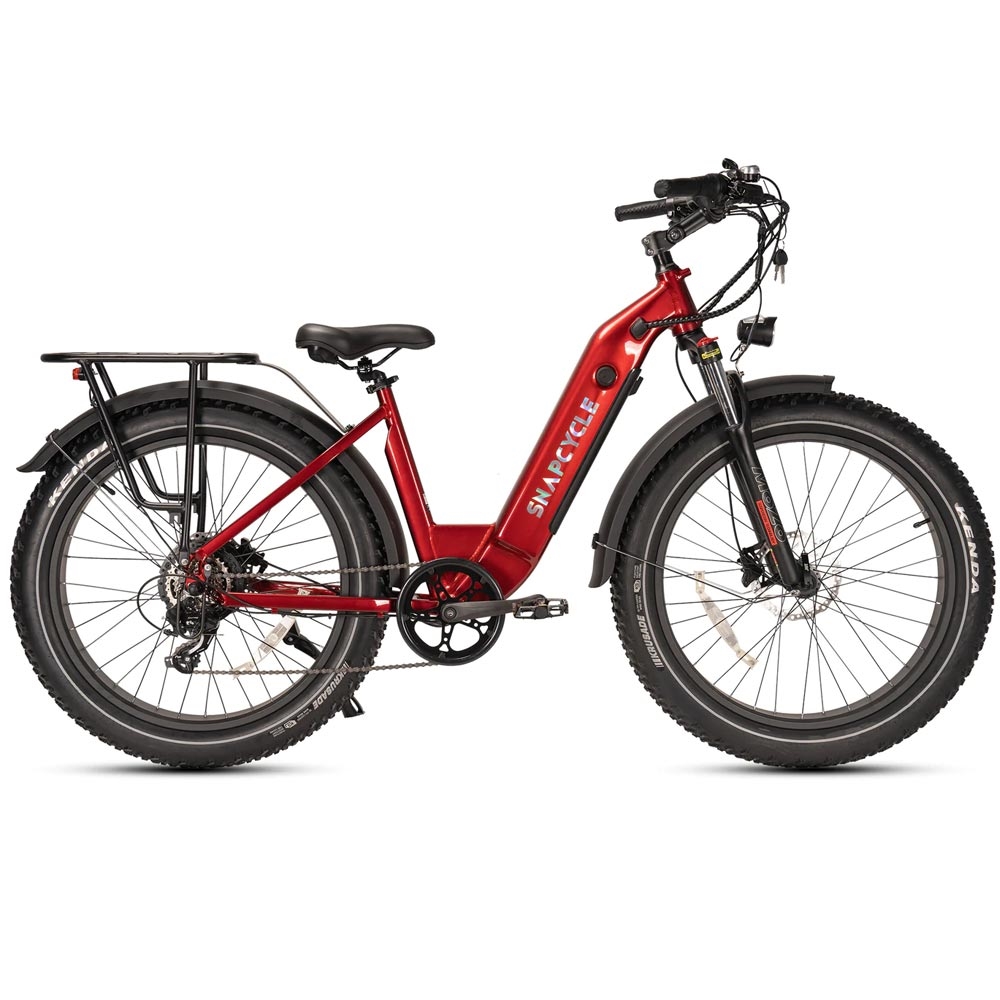

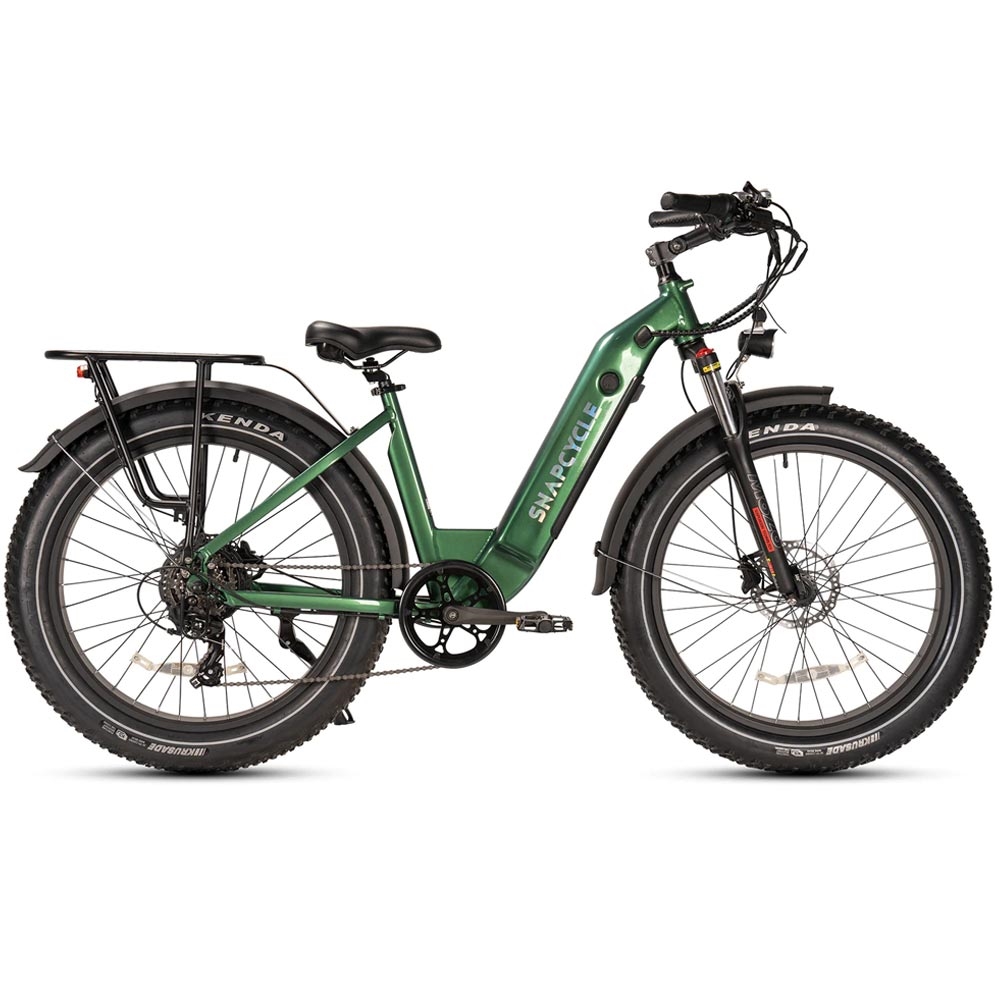

Snapcycle R1 Step Thru E-Bike: As Snapcycle's most popular model, the R1, with its elegant appearance, advanced high-speed geared hub motor, and innovative step-through design, can navigate through various complex terrains, making it perfect for riders
- Battery 48V 14Ah Samsung 35E / LG MJ1 lithium battery
- Range 30~45 Miles
- Electric Bike Class Class 2 (configurable to Class 3)
- Hub Motor 750W brushless geared motor, 1200W Peak
- Charging Time 4 ~ 5 Hours
- Total Payload Capacity 275lbs
- Recommended Rider Heights 5'2" ~ 6'4"
- Charger US standard 3.0A fast charger, UL Certified
- Controller 48V / 22A 12-Tube
- Display Adjustable-Angle, Backlit, Grayscale 3.2'' LCD
- Frame Aluminium 6061
- Lights Integrated front light and rear light with brake light, LED
- Pedal Assist Intelligent 0~5 level pedal assist
- Weight 72lbs
48V 14Ah Samsung/LG Lithium-Ion Battery
Our batteries are rated 48V-14Ah and are made of premium Samsung INR18650-35E / LG INR18650-MJ1 cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.
750W Brushless Geared Hub Motor
With 750W continuous (1200W peak) power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
Hydraulic Disc Brakes
The sensitive dual-piston hydraulic braking system comes with metal-ceramic brake pads, and 180mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.
Half Twist Throttle
The half-twist throttle prevents accidental activation of the electrical motor, protecting you from injuries
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- Brake Calipers Hydraulic, Dual-Piston, HD-E500
- Brake Levers Aluminium alloy comfort grip levers with motor cutoff switch
- Crank Set 48T, 170mm Aluminium Alloy, Double-Sided Plastic Guard
- Fender Full coverage front and rear
- Freewheel Shimano MF-TZ500-7 14-28T Freewheel
- Grips Ergonomic, Stitched Imitation Leather
- Headset Semi-Integrated, Sealed Cartridge, 1-1/8" Straight
- Pedals Neco Aluminum Alloy Platform with Reflector
- Saddle Justek soft foam saddle
- Seatpost Clamp Quick-Release type
- Spokes Stainless Steel, 12 Gauge, Black with Silver Nipples
- Brake Rotors 180 mm front and rear
- Chain KMC chain with 122 chainlinks
- Derailleur 7-Speed Shimano Tourney
- Fork MOZO Spring Suspension, 80mm Travel, Lockout and Preload Adjustment
- Gearing 1 x 7 Speed
- Handlebar Aluminum Alloy, Mid-Rise, 700mm Width, 31.8mm Bore
- Kickstand Heavy-duty aluminum stand
- Rims Aluminum Alloy, 26 inch, Double Wall
- Seatpost Aluminum Alloy, 320mm x 27.2mm Dia
- Shifter Shimano SIS Index Thumb Shifter
- Tire CST/Kenda 26”X4.0” puncture-resistant fat tires
|
|
|
|
|
|
|
