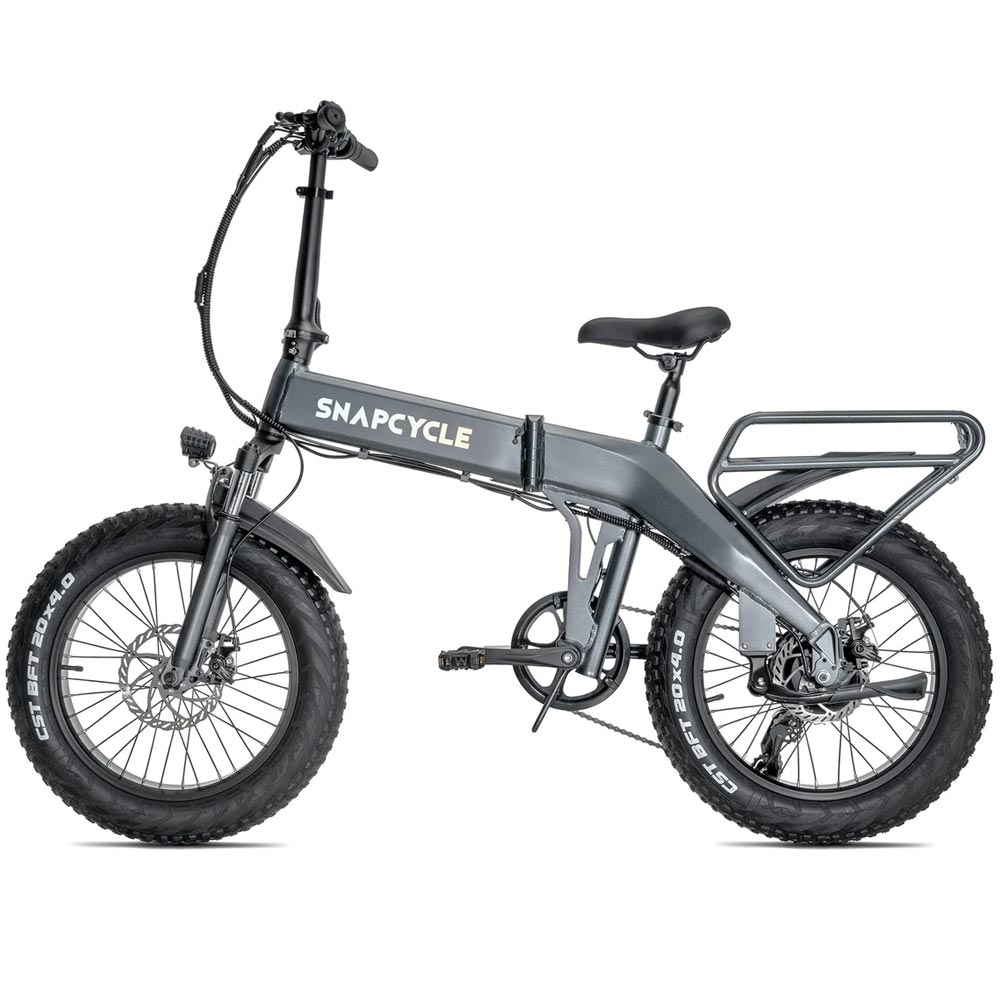

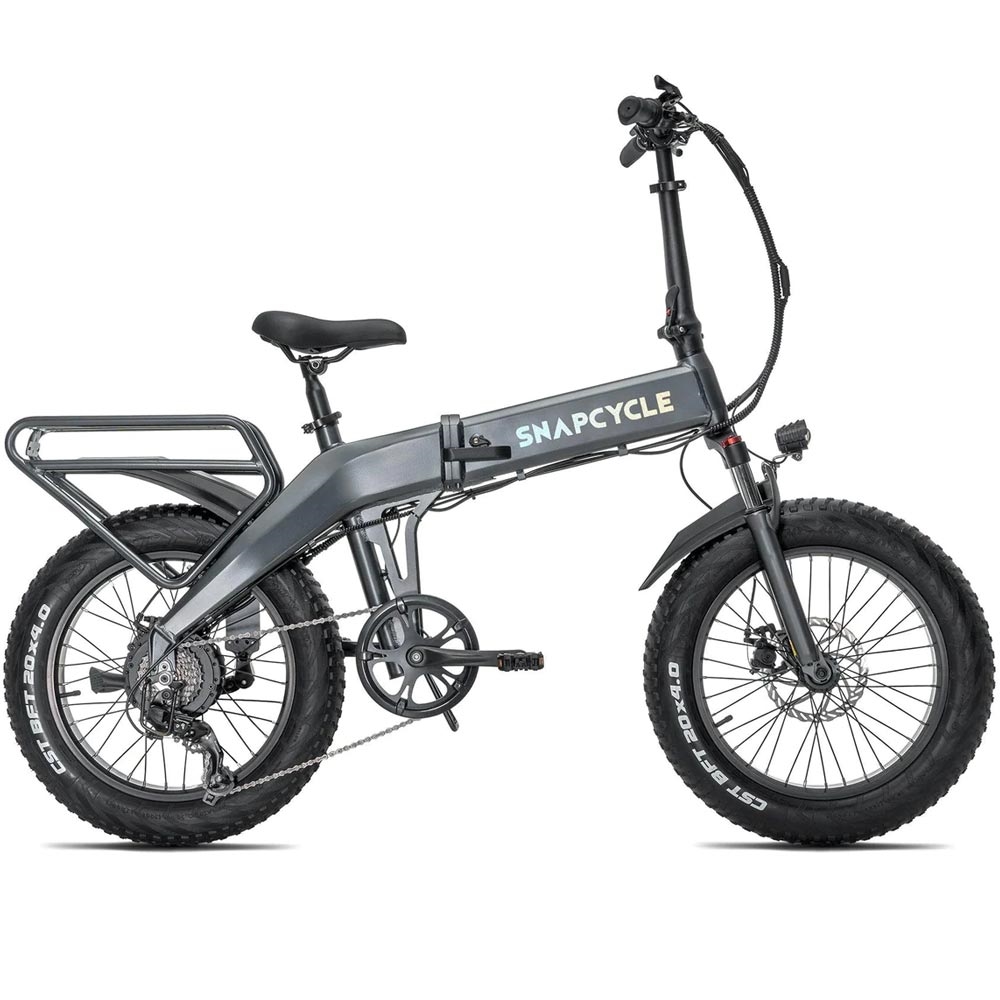

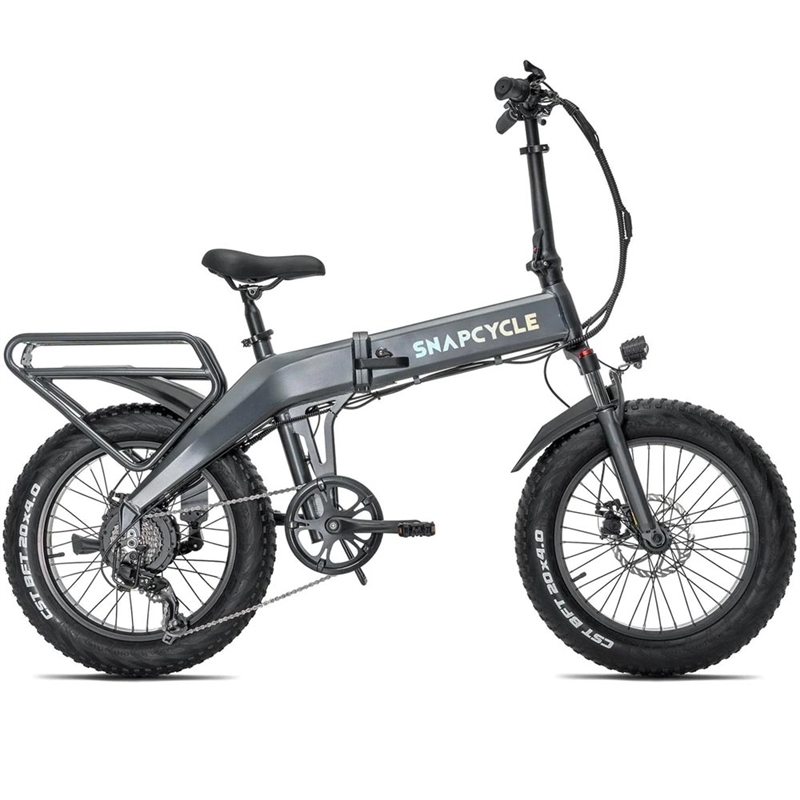

Snapcycle S1 E-Bike: Can't bring your ebike on the car? That's a thing of the past! While keeping it lightweight, you can still get the best and most comfortable riding experience, all in the S1.
- Electric Bike ClassClass 2 (configurable to Class 3 by the users)
- Battery 48V 14Ah Samsung 35E lithium battery, CE Certified
- Charging Time4 ~ 5 Hours
- Range30~45 Miles
- Hub Motor750W brushless geared motor (Peak 1200W)
- Total Payload Capacity300 lbs
- Recommended Rider Heights5'2" ~ 6'4"
- Weight66lbs
- Charger US standard 3.0 A smart charger, UL Certified
- Controller 48V / 25A 12-Tube
- Display Adjustable-Angle, Backlit, Grayscale 3.2'' LCD
- Drive Mode Cadence Sensing Pedal Assist / Trigger Throttle
- Pedal Assist Intelligent 0~5 level pedal assist
- Dimension 65" L x 23" W x 48" H
- Dimension (Folded) 39" L x 20" W x 31" H
750W Brushless Geared Hub Motor
With 750W sustained, 1056W peak power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
48V 15Ah Samsung Lithium Battery
Our batteries are rated 48V-15Ah and are made of premium Samsung INR21700-50E cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.
Hydraulic Disc Brakes
The sensitive dual-piston hydraulic braking system comes with metal-ceramic brake pads, and 160mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.
6061 Aluminum Foldable Frame

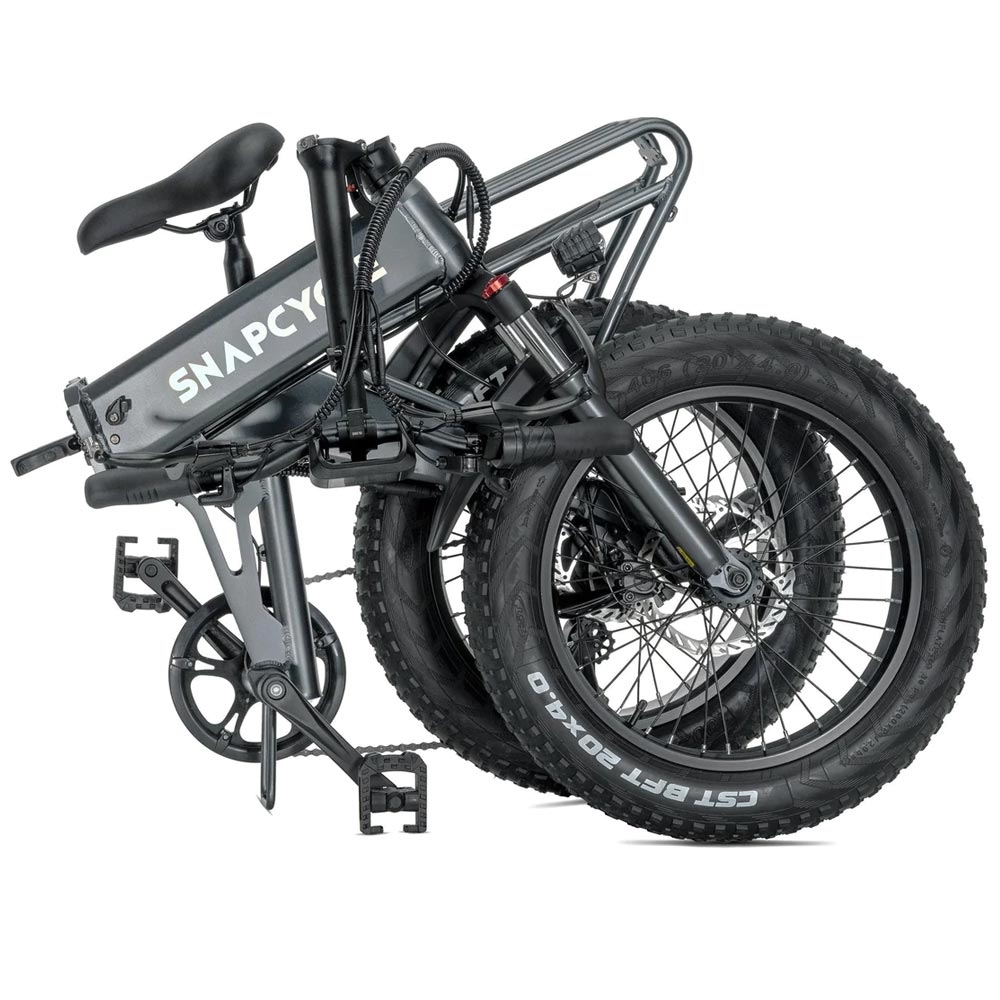

Once the road wears you out, fold your Snapcycle Eagle effortlessly in three easy steps and get it ready for tomorrow's escapades.
Quick & Smart 48V 3 Amp Charger
It only takes less than 5 hours to fully charge the battery, which greatly shortens the time between rides to keep up with the rapid pace of your commuting demands. This fast charger is certified to UL standards and its safety and reliability are guaranteed.
Backlit LCD Display
The intuitive display provides real-time information about your ride, including mileage, battery level, speed and power. lt also provides diagnostic information to its users.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- Brake Calipers Hydraulic, Dual-Piston, HD-E500
- Brake Levers Aluminium alloy comfort grip levers with motor cutoff switch
- Crank Set 46T, 170mm Aluminium Alloy, Double-Sided Plastic Guard
- Fender Half coverage, front and rear
- Freewheel 7 Speed 14-28T Cassette
- Grips Ergonomic, Synthetic Leather
- Headset Sealed Bearing Headset
- Pedals Wellgo 9/16" Alloy Plastic, Foldable with Reflector
- Saddle Snapcycle comfort foam saddle
- Seatpost Clamp Quick-Release type
- Spokes Stainless Steel, 12 Gauge, Black with Silver Nipples
- Brake Rotors 180 mm front and rear
- Chain KMC chain with 112 chainlinks
- Derailleur 7-Speed Shimano Tourney
- Fork Spring Suspension, 30mm Travel, Lockout and Preload Adjustment
- Gearing 1 x 7 Speed
- Handlebar Aluminum Alloy, 6 Degree Angle, 600mm Width, 25.4mm Bore
- Kickstand Heavy-duty aluminum stand
- Rims Aluminum Alloy, 20 inch, Double Wall
- Seatpost Aluminum Alloy, 350mm x 33.9mm Dia
- Shifter Shimano SIS Index Thumb Shifter
- Tire CST BFT 20”X4.0” fat tires
|
|
|
|
|
|
|
